HomeRangeHalter Fixings

Halter fixings

With a larger 6.0mm thread diameter for improved pull-out values, our halter range in Stainless Steel is designed for fixing halter brackets and clips to light steel or timber.

Where can I use these fixings?

Fixing to timber

Our reduced diameter drill point on our DF2 range provides increased pull-out values into light steel and timber – available in Stainless Steel A2/304, or A4/316

Fixing to light steel

Our DF3 halter range is designed specially for fastening clips and halter brackets to steel purlins and rails up to 3mm thick

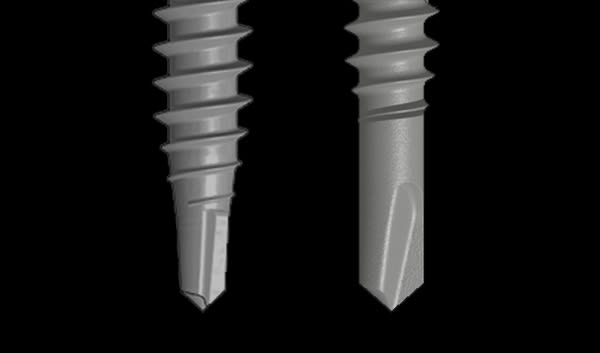

Drill Points

Our unique drill point geometry means our range for halter brackets can cover steel thicknesses from 1.2 – 3mm steel. Optimised steel hardness eliminates failures, giving you a clean, fast drill every time.

DF2 range – for fixing 0.7mm - 2mm steel and timber

DF3 range – fixing 1.2mm - 3mm steel

Steel Grades

Stainless Steel A2/304

Our A2/304 Stainless Steel fasteners provide excellent corrosion resistance and are suitable for use in medium risk corrosivity environments, or on projects using Aluminium sheeting or components.

Stainless Steel A4/316

A4/316 Stainless Steel is a super-austenitic alloy containing high levels of molybdenum, nitrogen and nickel – ensuring it is highly resistant to corrosion, tarnishing and stress.

Sheeting & cladding on our Skills Hub

Educational
4 minute read
clock
What fastener material should I use for which environment?
  • Flat Roofing
  • Rainscreen & Façades
  • Sheeting & Cladding
Educational
4 minute read
clock
What is the lifespan of a fastener?
  • Flat Roofing
  • Rainscreen & Façades
  • Sheeting & Cladding
Educational
2 minute read
clock
Why are building envelope fasteners important?
  • Flat Roofing
  • Rainscreen & Façades
  • Sheeting & Cladding

Discover more sheeting & cladding articles on our Skills Hub

Learn more

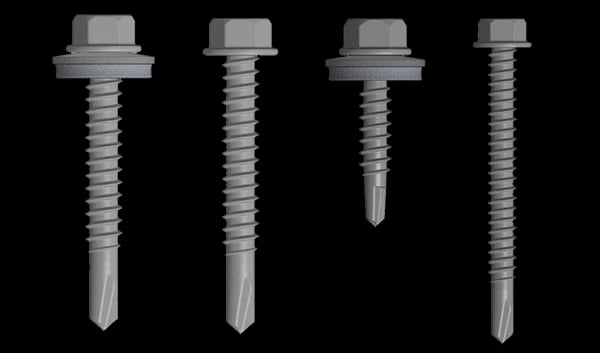

Head Styles

Hex

Precision engineered hexagon heads for easier driving.

With an 8mm wide head, these can be easily installed using our GreenDrive colour socket.

Sealing washers

A variety of washer materials and diameters are available to suit all roofing, cladding & façade applications.

These are the general recommendations for washer sizes; however, consideration should be given to the corrugation dimensions and system manufacturer specifications.

Code Diameter Image Application
A15 15mm Vertical cladding
A19 19mm Roof sheeting

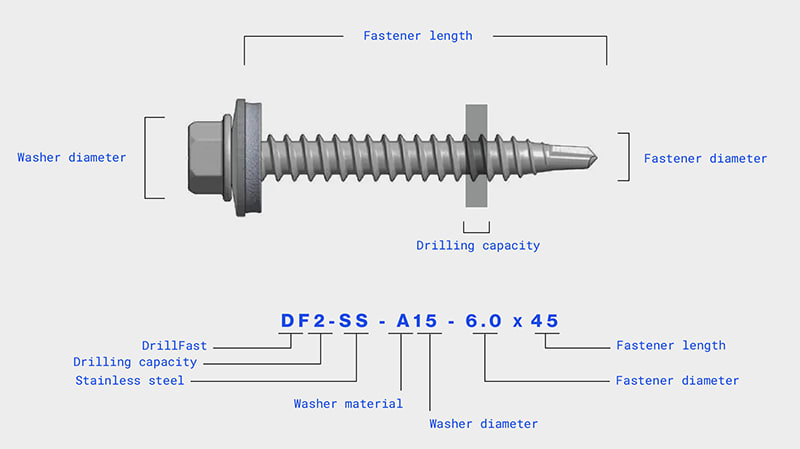

Code Explainer

Certified. Assured.

With over 40 years of fastening engineering experience, we ensure all our products are backed up by relevant certifications – for peace of mind.
